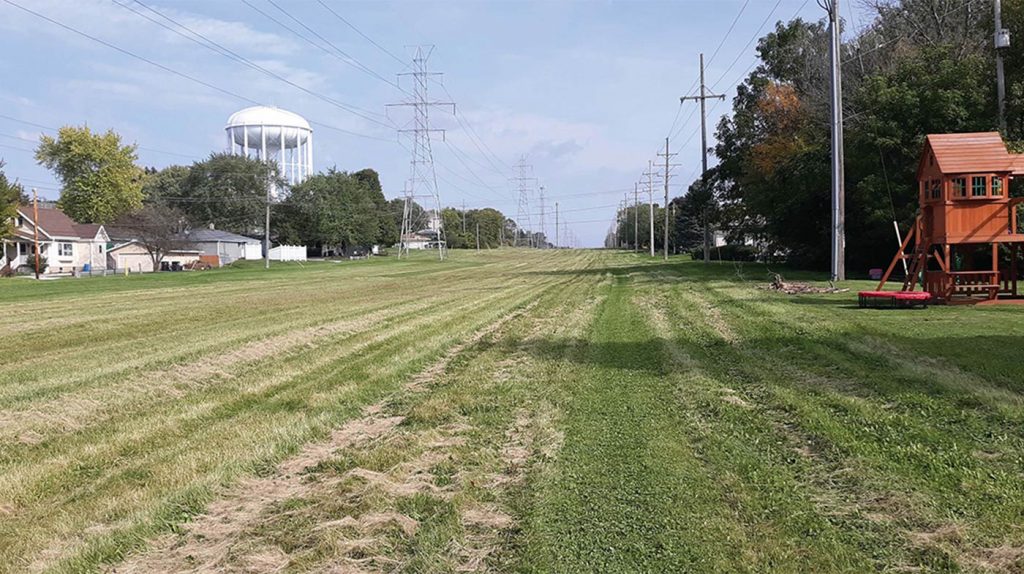

KL Engineering is working with the City of Greenfield to design phase one of a major E-W corridor that will add significant multi-modal connection throughout the SE region. This 3- mile trail begins at the Oak Leaf Trail and follows W Cold Spring Dr. east, turns north and utilizes an existing We Energies Corridor to continue east to 60th Street. The design incorporates a 10-foot wide asphalt trail through the project with new roadway crossings at 8 locations along the corridor. In addition, new curb and gutter and storm sewer will be designed along W Cold Spring to create an urban roadway section and provide a terrace barrier between vehicular traffic and bicycle and pedestrian trail users. Utility coordination is a key point due to 18 different utility owners being present along the project. Early coordination and location identification allowed for avoidance and minimization of utility conflicts with the project.
PORTFOLIO
PARKS, TRAILS & RECREATION — DESIGN
Greenfield Powerline Trail
CLIENT
City of Greenfield | Jeff Katz, City Engineer
LOCATION
Greenfield, Wisconsin
DATES
January 2021 - Present
KL Contact
Samantha Herheim, PE
Project Details
- Trail Design
- WisDOT Non-Traditional Project
- Extensive Utility Coordination
- Public Outreach
- Significant Alternative Analysis
- Wetlands
- Roadway Intersection Improvements
- Utility Corridor
- State & Local Permitting
- Interagency Coordination
