Wisconsin State Lab of Hygiene Lighting

CLIENT

Wisconsin Division of Facilities Development (DFD)

LOCATION

Madison, Wisconsin

LIMITS

Wisconsin State Lab of Hygiene (WSLH) & Department of Agriculture, Trade & Consumer Protection (DATCP)

DATES

November 2020 – November 2021

KL Contact

Jacob Joyal, PE

Project Details

  • Site Lighting & Electrical Design
  • Photometric Modeling & Analysis
  • Site Evaluation & Field Review
  • Construction Oversight
  • Bid Packaging & Advertisement
  • LED Retrofit
  • Flood Lighting & Flag Illumination
  • Circuit Design & Cabling

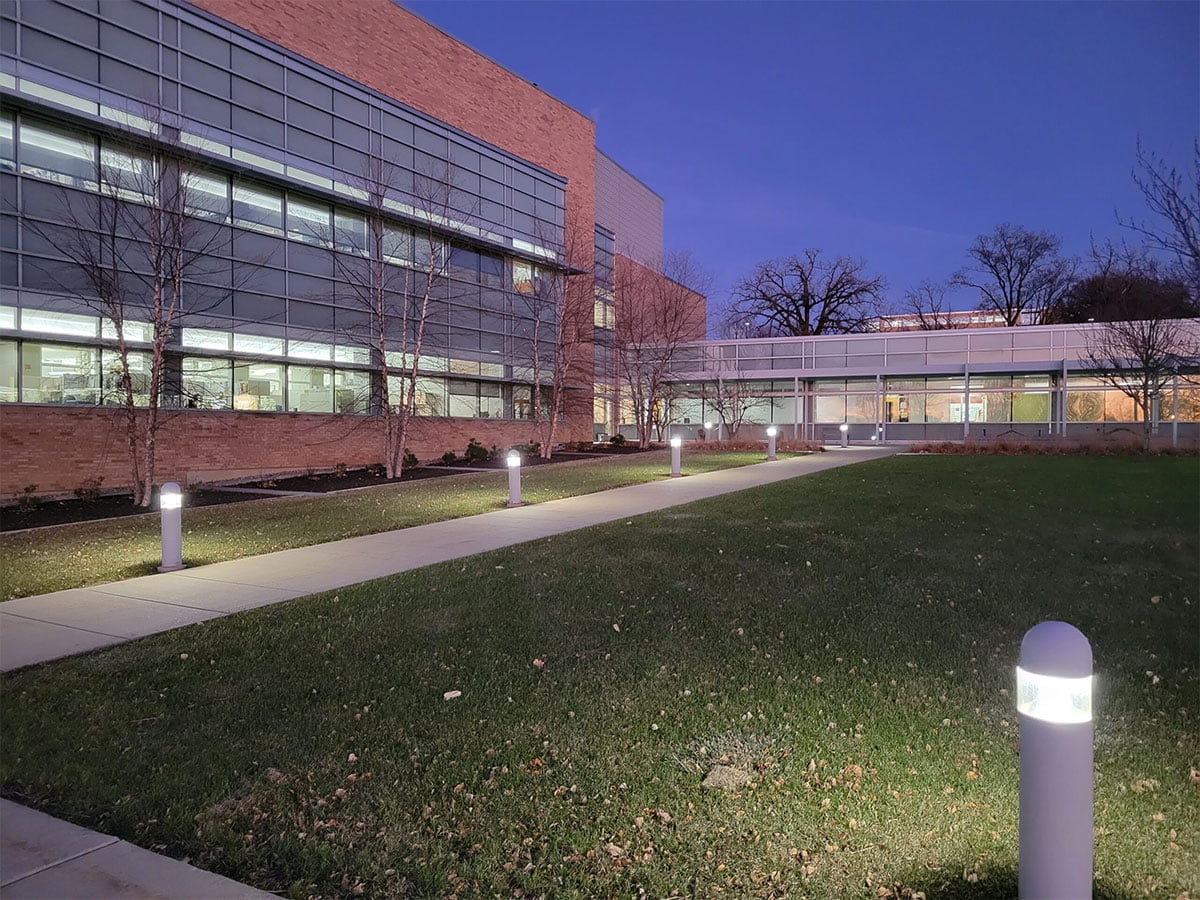

  • Bollard Lighting
  • Wisconsin Division of Facilities Development (DFD)

Site Lighting Design & Bidding Package

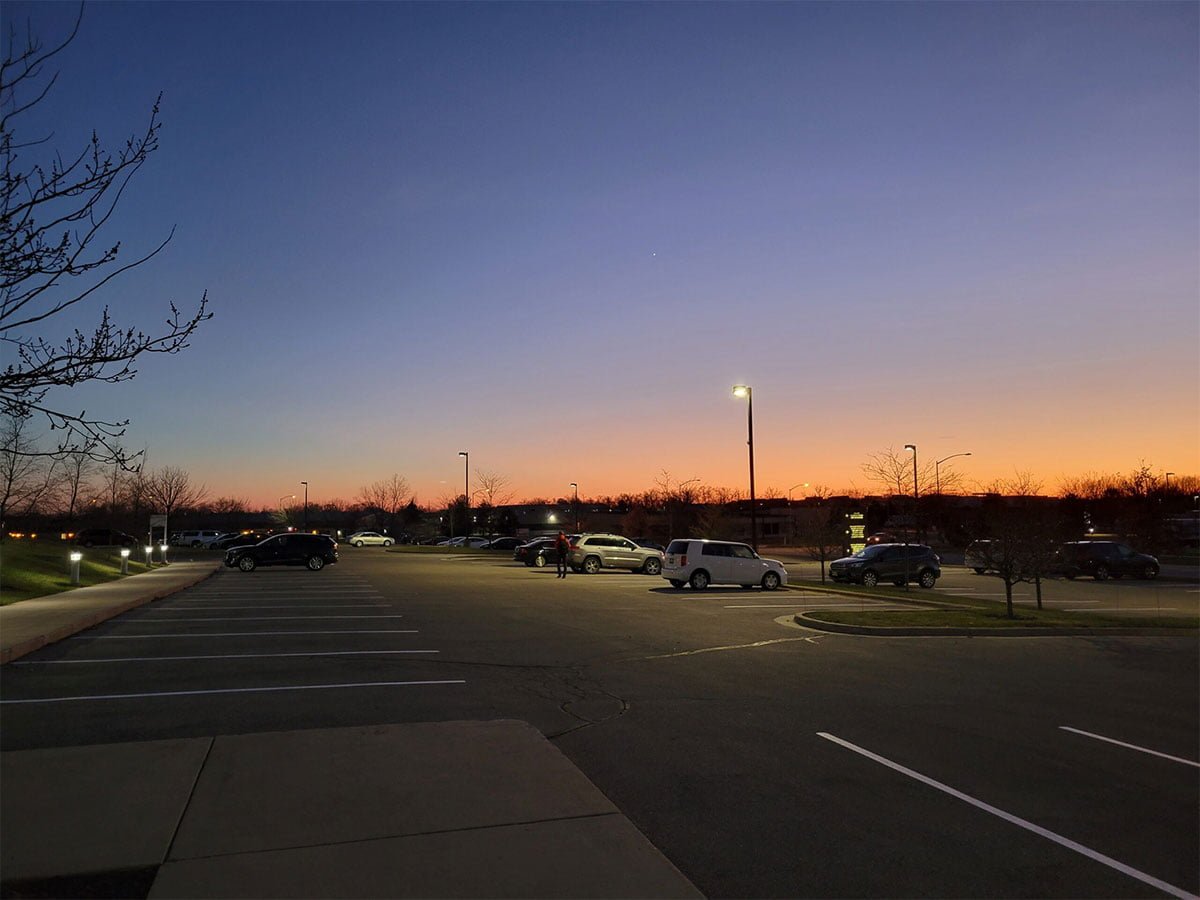

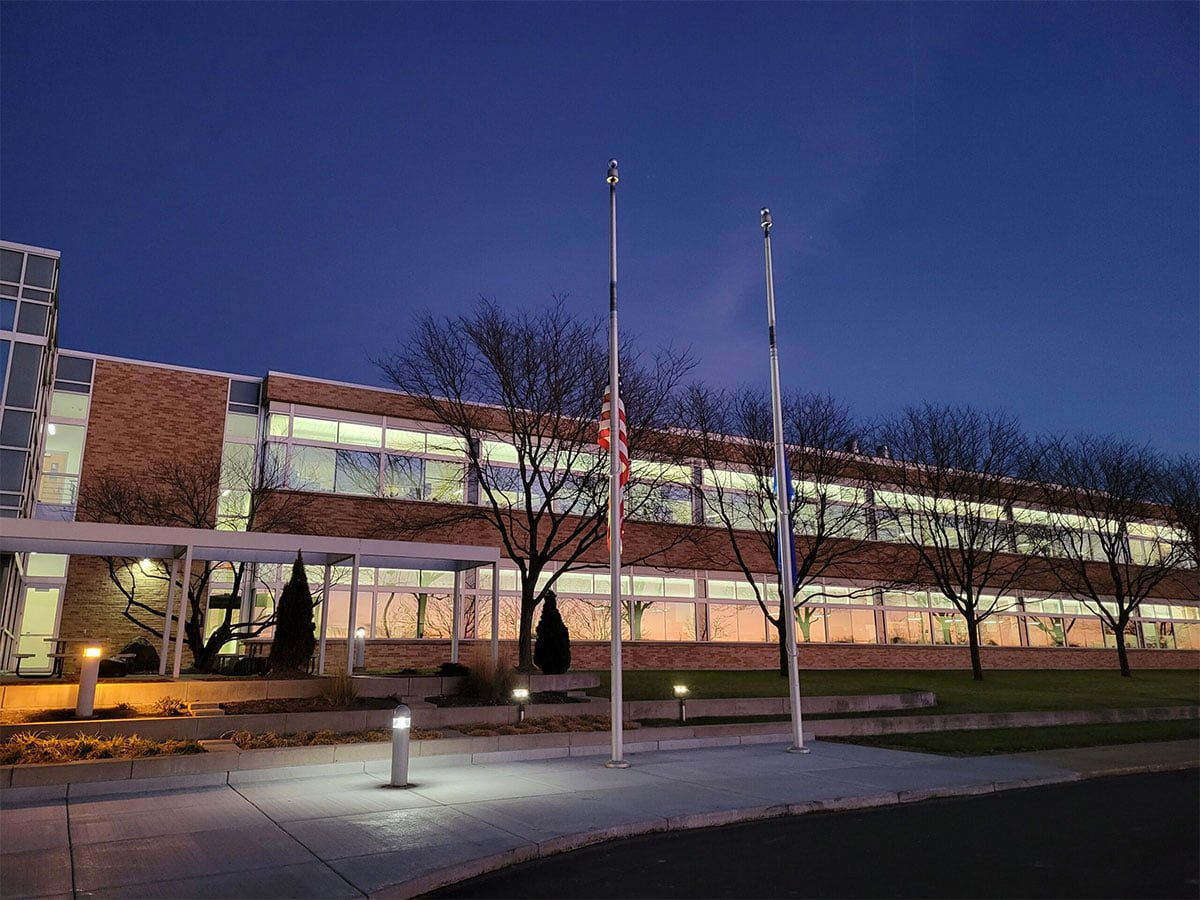

KL Engineering provided site lighting design and bidding package for the Wisconsin State Hygiene Lab in Madison, WI. The project consisted of replacing existing lighting fixtures within the parking lots on the campus of the Hygiene Lab and Agriculture building, as well as the loading dock and roadways between the two buildings. Work included all new underground infrastructure, which required provisions for re-establishing electrical service to the existing panels inside the building’s mechanical room. This project also included the replacement of existing floodlighting which illuminates the American flag in front of the Hygiene Lab.

An alternative analysis was provided to the client to determine the desired luminaire and pole materials to be used as replacements. In addition to the design and bid packaging, KL provided construction oversight for the electrical installations.

Construction Cost: $650,000

Wisconsin State Lab of Hygiene Lighting [Photos]
