STRUCTURES — DESIGN & CONSTRUCTION

North Fish Hatchery Road (CTH D) Structures

CLIENT

City of Fitchburg

LOCATION

Fitchburg, Wisconsin | Dane County

LIMITS

USH 12/18 Beltline to CTH PD (1.9 miles)

DATES

April 2020 – November 2021

KL Contact

Chad Halverson, PE

Project Details

  • 6 Retaining Walls
  • 1,390 Linear Feet of Large Block Gravity Walls
  • 460 Linear Feet of Post & Panel Wall with Cast in Place Facing
  • 70-foot Span Prefabricated Steel Truss Pedestrian Bridge
  • Hydraulic Analysis of Nine Springs Creek

Urban multi-modal path Structures

KL Engineering completed the design and is oversaw the construction of this 1.5-mile reconstruction project along North Fish Hatchery Road between CTH PD and the Madison West Beltline Highway (USH 12/14) in Fitchburg, WI. This 4-lane divided roadway with an AADT of 28,000 has dense commercial and residential uses throughout much of the corridor.

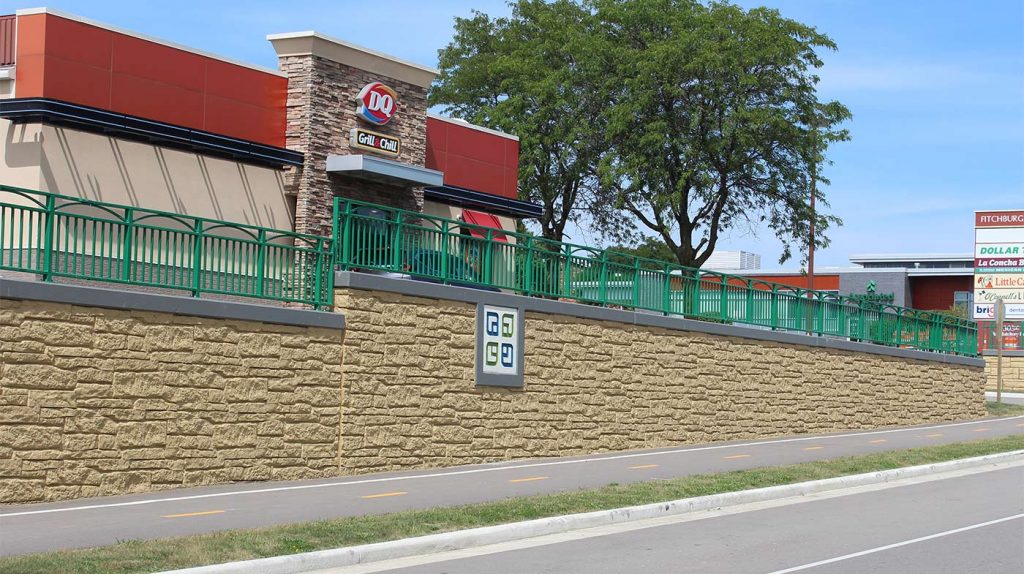

The project included an urban multi-modal path along the roadway. Large block gravity retaining walls were designed along the edge of the path. Post and panel walls were required along one section where commercial buildings were located close to the path. The cast-in-place facing on this wall was designed to mimic the pattern of the other wall sections to provide continuity throughout the corridor. Decorative railings and City logos were added as additional aesthetic enhancements.

A prefabricated steel pedestrian truss was designed along a new alignment over Nine Springs Creek to improve user safety and to provide a scenic view of the adjacent golf course.



  • 2022 Project of the Year Award Winner – American Public Works Association (APWA) Wisconsin Chapter
  • 2022 Engineering Achievement Award Winner – American Society of Civil Engineers (ASCE) Wisconsin Chapter
  • 2023 Engineering Excellence Best of State Award Winner – American Council of Engineering Companies (ACEC) Wisconsin
  • 2023 Engineering Excellence National Recognition Award – American Council of Engineering Companies (ACEC)

North Fish Hatchery Road (CTH D) Structures [Photos]
