CTH PD (McKee Road) Corridor Redesign

CLIENT

City of Madison | Chris Petykowski, City Principal Engineer
Dane County | Pam Dunphy, County Deputy Commissioner

LOCATION

Madison, Wisconsin

LIMITS

Meriter Way to Maple Grove Drive (1.5 miles)

DATES

December 2014 – November 2016

Construction

2017 | $10.3 million

KL Contact

Aaron Steger, PE

2018 WisDOT Excellence in Design Award Finalist for Best Local Program Project – Consultant

  • Urban / Intersection Roadway Design
  • Multi-Modal Accommodations
  • Ice Age Path Overpass
  • Drainage Improvements
  • Utility Coordination
  • Public Involvement
  • Traffic Control & Construction Staging
  • Traffic Signal & Lighting Design
  • Local Infrastructure Improvements
  • WisDOT Local Program Project

2018 WisDOT Excellence in [Design Award] Finalist

The project involved reconstructing 1.5-miles of CTH PD from a 2-lane rural section to a 4-lane urban roadway with improved intersection geometrics to address safety concerns. The design included sidewalk, multi-use path, path bridge over CTH PD, bike lanes, storm sewer, sanitary sewer, water main, lighting, traffic signals, traffic control plans, environmental document, Section 4f coordination, wetland tracking, project plat, public involvement, utility coordination and acquiring permits.

The Badger Mill Creek channel was enhanced to function as a storm water treatment pond to increase removal of suspended solids and control peak flows.

Challenges included upgrading the profile to improve sight distance, provide adequate vertical clearance for the pedestrian bridge over CTH PD and proactive utility coordination to determine utility impacts for high voltage transmission poles and high-pressure gas line. As a result, both facilities were provided sufficient time to develop relocation plans, acquire easements, and perform relocations prior to construction.

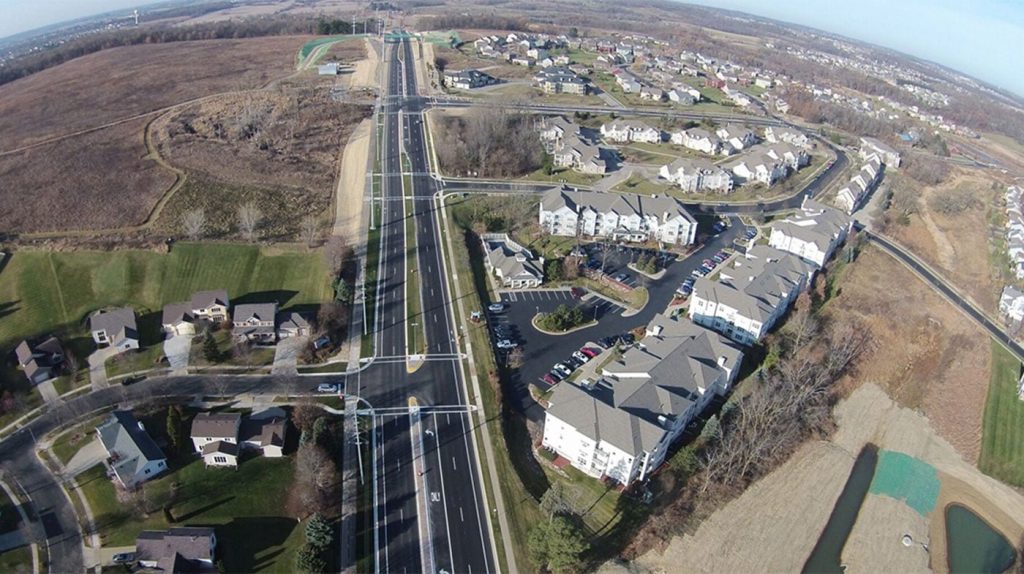

CTH PD (McKee Road) Corridor Redesign [Photos]
